JPA @OneToOne Annotation

In this blog post, we will explore the JPA @OneToOne annotation, understand how it works, and see practical examples of mapping one-to-one relationships in JPA.

In Jakarta Persistence API (JPA), relationships between entities play a crucial role in modeling real-world scenarios. One of the most common relationships is the one-to-one relationship, where one entity is associated with another entity. JPA provides the @OneToOne annotation to establish such relationships.

Understanding @OneToOne Annotation

The @OneToOne annotation is used to map a one-to-one relationship between two entities. It defines a relationship between the owning entity (source) and the target entity (dependent). In this type of relationship, each instance of the owning entity is associated with exactly one instance of the target entity, and vice versa.

The @OneToOne annotation supports the following attributes:

cascade: Specifies the operations that should be cascaded to the target entity. In the example, CascadeType.ALL indicates that all operations (e.g., persist, merge, remove) performed on User should be cascaded to UserProfile.

fetch: Defines how the target entity is fetched from the database. Common options are FetchType.EAGER (loaded immediately with the owning entity) and FetchType.LAZY (loaded on-demand when accessed).

mappedBy: Used for bidirectional relationships. It establishes the owner of the relationship. If not specified, it is considered unidirectional.

optional: Indicates whether the relationship is optional (default is true). If false, the target entity must always exist.

orphanRemoval: Whether to apply the remove operation to entities that have been removed from the relationship and to cascade the remove operation to those entities.

targetEntity: entity class that is the target of the association.

@OneToOne Annotation Example

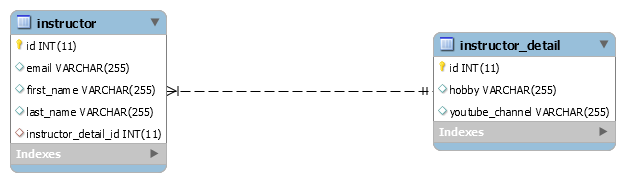

In this example, we create Instructor and InstructorDetail entities and we make a one-to-one mapping between them.

To demonstrate the @OneToOne annotation, consider the following JPA entities.

Instructor JPA Entity

 import javax.persistence.*;

@Entity
@Table(name = "instructor")
public class Instructor {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private int id;

    @Column(name = "first_name")
    private String firstName;

    @Column(name = "last_name")
    private String lastName;

    @Column(name = "email")
    private String email;

    @OneToOne(cascade = CascadeType.ALL)
    @JoinColumn(name = "instructor_detail_id")
    private InstructorDetail instructorDetail;

     // getter/setter methods
}


InstructorDetail JPA Entity

import jakart.persistence.&;

@Entity
@Table(name = "instructor_detail")
public class InstructorDetail {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private int id;

    @Column(name = "youtube_channel")
    private String youtubeChannel;

    @Column(name = "hobby")
    private String hobby;

    // getter/setter methods
}


In this example, the Instructor entity has a one-to-one relationship with the InstructorDetail entity, represented by the @OneToOne annotation. The relationship is established through the instructorDetail field in the Instructor entity, which is annotated with @OneToOne.

In the example, CascadeType.ALL indicates that all operations (e.g., persist, merge, remove) performed on Instructor should be cascaded to InstructorDetail.

Unidirectional vs. Bidirectional One-to-One

In the example above, we have a unidirectional one-to-one relationship, where Instructor owns the relationship with InstructorDetail. If we want a bidirectional relationship, we can add a reference back from InstructorDetail to Instructor using the mappedBy attribute:

import jakarta.persistence.*;

@Entity
@Table(name = "instructor_detail")
public class InstructorDetail {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private int id;

    @Column(name = "youtube_channel")
    private String youtubeChannel;

    @Column(name = "hobby")
    private String hobby;

    @OneToOne(fetch = FetchType.LAZY, mappedBy = "instructorDetails")
    @JoinColumn(name = "instructor_id")
    private Instructor instructor;

    // getters and setters
}


In this bidirectional relationship, both Instructor and InstructorDetails entities are aware of each other.

Complete One-to-One Mapping Examples

JPA/Hibernate One-to-One Mapping Annotation Example

JPA/Hibernate One-to-One Bidirectional Mapping Annotation Example

Conclusion

The @OneToOne annotation in JPA is a powerful tool for mapping one-to-one relationships between entities. Whether you require a unidirectional or bidirectional relationship, the @OneToOne annotation offers flexibility and control over how entities are associated with one another.

By understanding how to use this annotation effectively, you can model complex relationships in your JPA-powered applications and achieve better data organization and management.
