JPA/Hibernate One to One Mapping Annotation Example

In this tutorial, we will learn how to implement step by step one-to-one entity mapping using JPA and Hibernate and MySQL database.

The @OneToOne JPA annotation is used to map the source entity with the target entity.

In this example, we create Instructor and InstructorDetail entities and we make a one-to-one mapping between them.

We will implement CRUD (create/save, read, update, delete) operations for Instructor and InstructorDetail entities.

>For Instructor DAO CRUD operations:

void saveInstructor(Instructor instructor);

void updateInstructor(Instructor instructor);

void deleteInstructor(int id);

Instructor getInstructor(int id);


For InstructorDetailDao DAO CRUD operations:

void saveInstructorDetail(InstructorDetail instructorDetail);

void updateInstructorDetail(InstructorDetail instructorDetail);

InstructorDetail getInstructorDetail(int id);


Development Steps

1. Create a Simple Maven Project
2. Project Directory Structure
3. Add jar Dependencies to pom.xml
4. Creating the JPA Entities(Persistent classes)
5. Create Hibernate DAO Classes
6. Create a Hibernate configuration file - HibernateUtil.java (Java Configuration)
7. Create the Main class and Run an Application

1. Create a Simple Maven Project

Use the How to Create a Simple Maven Project in Eclipse article to create a simple Maven project in Eclipse IDE.

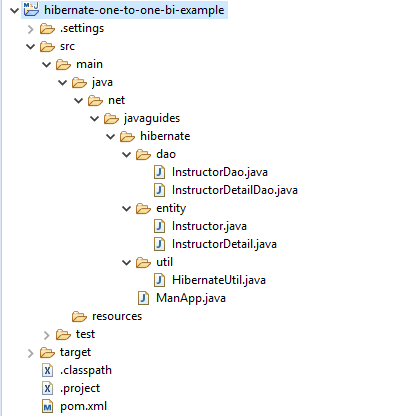

2. Project Directory Structure

Let's create a packaging structure for the above-created simple maven project. Refer to the below screenshot for your reference.

Add dependencies to pom.xml

We are using MySQL database so add MySQL dependency to pom.xml:

<project
    xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>net.javaguides.hibernate</groupId>
        <artifactId>hibernate-tutorial</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <artifactId>hibernate-one-to-one-example</artifactId>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.13</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.hibernate/hibernate-core -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>5.3.7.Final</version>
        </dependency>
    </dependencies>
    <build>
        <sourceDirectory>src/main/java</sourceDirectory>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.5.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Creating the JPA Entities(Persistent classes)

We are creating a unidirectional mapping, we have placed @OneToOne annotation on the Instructor entity so that the instuctor_detail_id will create in an instructor table.

Instructor JPA Entity

package net.javaguides.hibernate.entity;

import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.OneToOne;
import javax.persistence.Table;

@Entity
@Table(name = "instructor")
public class Instructor {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private int id;

    @Column(name = "first_name")
    private String firstName;

    @Column(name = "last_name")
    private String lastName;

    @Column(name = "email")
    private String email;

    @OneToOne(cascade = CascadeType.ALL)
    @JoinColumn(name = "instructor_detail_id")
    private InstructorDetail instructorDetail;

    public Instructor() {

    }

    public Instructor(String firstName, String lastName, String email) {
        this.firstName = firstName;
        this.lastName = lastName;
        this.email = email;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public InstructorDetail getInstructorDetail() {
        return instructorDetail;
    }

    public void setInstructorDetail(InstructorDetail instructorDetail) {
        this.instructorDetail = instructorDetail;
    }
}


InstructorDetail JPA Entity

package net.javaguides.hibernate.entity;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

@Entity
@Table(name = "instructor_detail")
public class InstructorDetail {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private int id;

    @Column(name = "youtube_channel")
    private String youtubeChannel;

    @Column(name = "hobby")
    private String hobby;

    public InstructorDetail() {

    }

    public InstructorDetail(String youtubeChannel, String hobby) {
        this.youtubeChannel = youtubeChannel;
        this.hobby = hobby;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getYoutubeChannel() {
        return youtubeChannel;
    }

    public void setYoutubeChannel(String youtubeChannel) {
        this.youtubeChannel = youtubeChannel;
    }

    public String getHobby() {
        return hobby;
    }

    public void setHobby(String hobby) {
        this.hobby = hobby;
    }
}


Create Hibernate DAO Classes

InstructorDao.java

package net.javaguides.hibernate.dao;

import org.hibernate.Session;
import org.hibernate.Transaction;

import net.javaguides.hibernate.entity.Instructor;
import net.javaguides.hibernate.util.HibernateUtil;

public class InstructorDao {
    public void saveInstructor(Instructor instructor) {
        Transaction transaction = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();
            // save the student object
            session.save(instructor);
            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
    }

    public void updateInstructor(Instructor instructor) {
        Transaction transaction = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();
            // save the student object
            session.update(instructor);
            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
    }

    public void deleteInstructor(int id) {

        Transaction transaction = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();

            // Delete a instructor object
            Instructor instructor = session.get(Instructor.class, id);
            if (instructor != null) {
                session.delete(instructor);
                System.out.println("instructor is deleted");
            }

            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
    }

    public Instructor getInstructor(int id) {

        Transaction transaction = null;
        Instructor instructor = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();
            // get an instructor object
            instructor = session.get(Instructor.class, id);
            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
        return instructor;
    }
}


InstructorDetailDao.java

package net.javaguides.hibernate.dao;

import org.hibernate.Session;
import org.hibernate.Transaction;

import net.javaguides.hibernate.entity.InstructorDetail;
import net.javaguides.hibernate.util.HibernateUtil;

public class InstructorDetailDao {

    public void saveInstructorDetail(InstructorDetail instructorDetail) {
        Transaction transaction = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();
            // save the student object
            session.save(instructorDetail);
            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
    }

    public void updateInstructorDetail(InstructorDetail instructorDetail) {
        Transaction transaction = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();
            // save the student object
            session.update(instructorDetail);
            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
    }

    public InstructorDetail getInstructorDetail(int id) {

        Transaction transaction = null;
        InstructorDetail instructor = null;
        try (Session session = HibernateUtil.getSessionFactory().openSession()) {
            // start a transaction
            transaction = session.beginTransaction();
            // get an instructor object
            instructor = session.get(InstructorDetail.class, id);
            // commit transaction
            transaction.commit();
        } catch (Exception e) {
            if (transaction != null) {
                transaction.rollback();
            }
            e.printStackTrace();
        }
        return instructor;
    }
}


Create a Hibernate configuration file - HibernateUtil.java (Java Configuration)

The HibernateUtil Java configuration file contains information about the database and mapping file.

Let's create a HibernateUtil file and write the following code in it.

package net.javaguides.hibernate.util;

import java.util.Properties;

import org.hibernate.SessionFactory;
import org.hibernate.boot.registry.StandardServiceRegistryBuilder;
import org.hibernate.cfg.Configuration;
import org.hibernate.cfg.Environment;
import org.hibernate.service.ServiceRegistry;

import net.javaguides.hibernate.entity.Course;
import net.javaguides.hibernate.entity.Instructor;

/**
 * Java based configuration
 * @author ramesh Fadatare
 *
 */
public class HibernateUtil {
    private static SessionFactory sessionFactory;

    public static SessionFactory getSessionFactory() {
        if (sessionFactory == null) {
            try {
                Configuration configuration = new Configuration();

                // Hibernate settings equivalent to hibernate.cfg.xml's properties
                Properties settings = new Properties();
                settings.put(Environment.DRIVER, "com.mysql.cj.jdbc.Driver");
                settings.put(Environment.URL, "jdbc:mysql://localhost:3306/javafx_demo?useSSL=false");
                settings.put(Environment.USER, "root");
                settings.put(Environment.PASS, "root");
                settings.put(Environment.DIALECT, "org.hibernate.dialect.MySQL5InnoDBDialect");

                settings.put(Environment.SHOW_SQL, "true");

                settings.put(Environment.CURRENT_SESSION_CONTEXT_CLASS, "thread");

                settings.put(Environment.HBM2DDL_AUTO, "create-drop");

                configuration.setProperties(settings);
                configuration.addAnnotatedClass(Instructor.class);
                configuration.addAnnotatedClass(Course.class);

                ServiceRegistry serviceRegistry = new StandardServiceRegistryBuilder()
                    .applySettings(configuration.getProperties()).build();
                System.out.println("Hibernate Java Config serviceRegistry created");
                sessionFactory = configuration.buildSessionFactory(serviceRegistry);
                return sessionFactory;

            } catch (Exception e) {
                e.printStackTrace();
            }
        }
        return sessionFactory;
    }
}


Create the Main class and Run an Application

package net.javaguides.hibernate;

import net.javaguides.hibernate.dao.InstructorDao;
import net.javaguides.hibernate.entity.Instructor;
import net.javaguides.hibernate.entity.InstructorDetail;

public class ManApp {
    public static void main(String[] args) {

        Instructor instructor = new Instructor("Ramesh", "Fadatare", "ramesh@javaguides.com");
        InstructorDetail instructorDetail = new InstructorDetail("http://www.youtube.com", "Guitar");
        instructor.setInstructorDetail(instructorDetail);

        InstructorDao instructorDao = new InstructorDao();
        instructorDao.saveInstructor(instructor);
    }
}

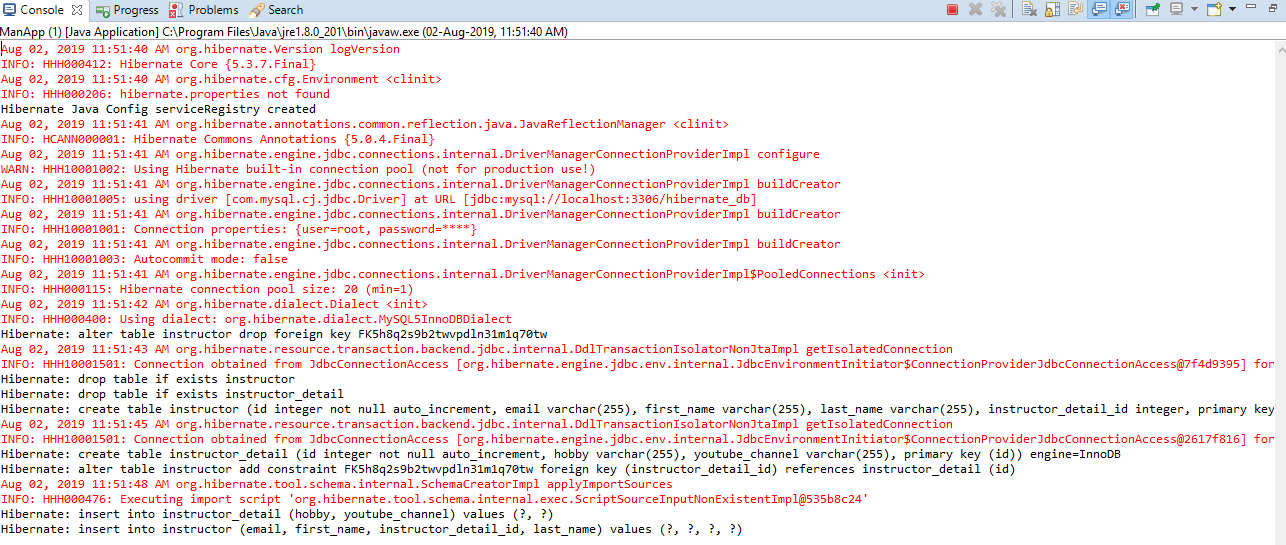

Output

Conclusion

In this tutorial, we successfully built a project from scratch and learned how to map a one-to-one database relationship using Hibernate/JPA.
