Spring IOC Container XML Config Example

In this tutorial, we will explore a simple example to demonstrate the Spring IoC (Inversion of Control) Container with XML-based configuration metadata.

Introduction

In a previous article, we discussed What is Spring IOC Container and how it works. Now, let's dive into a practical example to understand how to configure Spring beans using XML-based configuration metadata.

Ways to Supply Configuration Metadata to the Spring IoC Container

  1. XML-based configuration
  2. Annotation-based configuration
  3. Java-based configuration

Spring IOC Container XML Config Example

In this example, we will supply XML-based configuration metadata to the Spring IoC container.

Development Steps

Follow these steps to develop a Spring application:

  1. Create a simple Maven Project
  2. Add Maven Dependencies
  3. Configure HelloWorld Spring Beans
  4. Create a Spring Container
  5. Retrieve Beans from the Spring Container

Tools and Technologies Used

Step 1: Create a Simple Maven Project

Create a simple Maven project using your favourite IDE and refer to the Guide to Create a Simple Maven Project.

Step 2: Project Structure

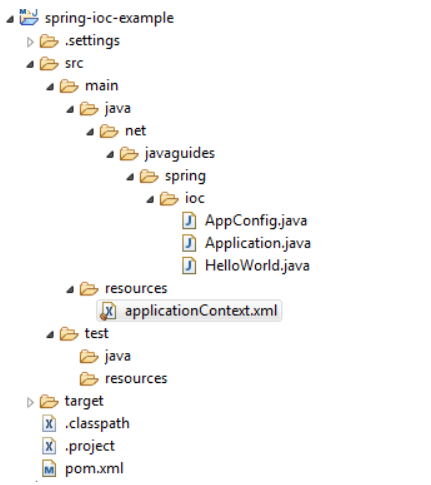

The below diagram shows a project structure for your reference:

Step 3: Add Maven Dependencies

Add the following content to the pom.xml file:


    <project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
         <modelVersion>4.0.0
         <groupId>net.javaguides.spring
         <artifactId>spring-ioc-example
         <version>0.0.1-SNAPSHOT
         <properties>
            <maven.compiler.target>17
            <maven.compiler.source>17
        </properties>
        <dependencies>
            <dependency>
               <groupId>org.springframework
               <artifactId>spring-context
               <version>6.0.6
               <dependency>
            <dependencies>
    <project>

Step 4: Configure HelloWorld Spring Beans

What is a Spring Bean?

A Spring bean is a Java object that is managed by the Spring container.

Create a HelloWorld Java class with the following content:


    package net.javaguides.spring.ioc;

    public class HelloWorld {
        private String message;

        public void setMessage(String message) {
            this.message = message;
        }

        public void getMessage() {
            System.out.println("My Message : " + message);
        }
    }

Next, configure the HelloWorld class as a Spring bean using XML-based configuration:


        <?xml version = "1.0" encoding = "UTF-8"?>
        <beans xmlns="http://www.springframework.org/schema/beans"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans.xsd">

            <bean id="helloWorld" class="net.javaguides.spring.ioc.HelloWorld">

            </bean>

        <beans>

Step 5: Create a Spring Container

If you have a Spring bean configuration XML file in a standalone application, you can use

ClassPathXmlApplicationContextclass to load the file and get the container object.


    package net.javaguides.spring.ioc;

    import org.springframework.context.ApplicationContext;
    import org.springframework.context.support.ClassPathXmlApplicationContext;

    public class Application {
        public static void main(String[] args) {
            ApplicationContext context =
                new ClassPathXmlApplicationContext("applicationContext.xml");
        }
    }

Step 6: Retrieve Beans from the Spring Container

The ApplicationContext interface provides the getBean() method to retrieve the bean from the Spring container.


    package net.javaguides.spring.ioc;

    import org.springframework.context.ApplicationContext;
    import org.springframework.context.support.ClassPathXmlApplicationContext;

    public class Application {
        public static void main(String[] args) {
            ApplicationContext context =
                new ClassPathXmlApplicationContext("applicationContext.xml");
            HelloWorld obj = (HelloWorld) context.getBean("helloWorld");
            obj.getMessage();
        }
    }

Output

My Message : Hello World!

Conclusion

In this tutorial, we learned how to configure spring beans using XML-based configuration. We covered the steps to create a Maven project, add dependencies, configure beans, create a Spring container, and retrieve beans from the container.
