Spring Boot Vue.js CRUD Example: Full-Stack Application

author : Sai K

In this tutorial, we will create a full-stack application using Spring Boot 3 for the backend and Vue.js 3.4 for the

frontend. We will implement CRUD (Create, Read, Update, Delete) operations. The tutorial will cover setting up

the project, creating the backend with Spring Boot, and building the frontend with Vue.js.

Prerequisites

Before we start, ensure you have the following:

• Java Development Kit (JDK) installed


• Apache Maven installed


• Node.js and npm installed


• An IDE (such as IntelliJ IDEA, Eclipse, or VS Code) installed

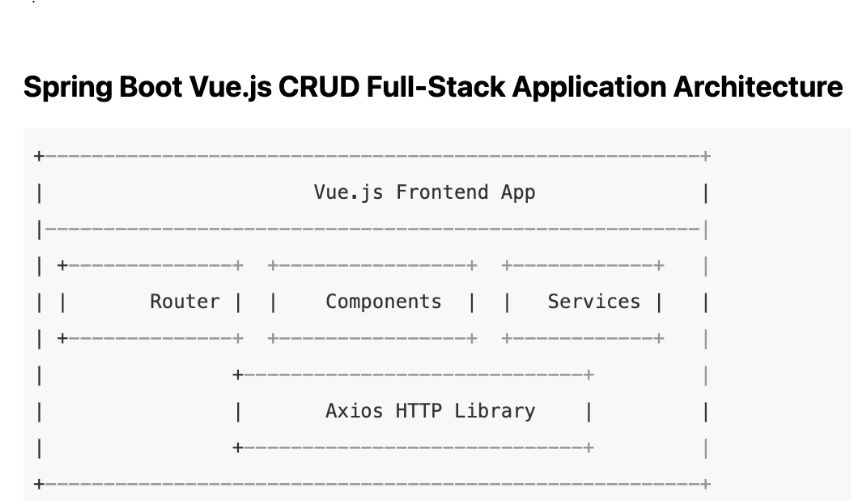

Spring Boot Vue.js CRUD Full-Stack Application Architecture

Explanation:

1.Vue.js Frontend App:

• Router: Manages routing and navigation within the application.


• Components: Represents the UI elements of the application.


• Services: Handles the business logic and data processing in the frontend.


• Axios HTTP Library: A promise-based HTTP client for making requests to the backend.

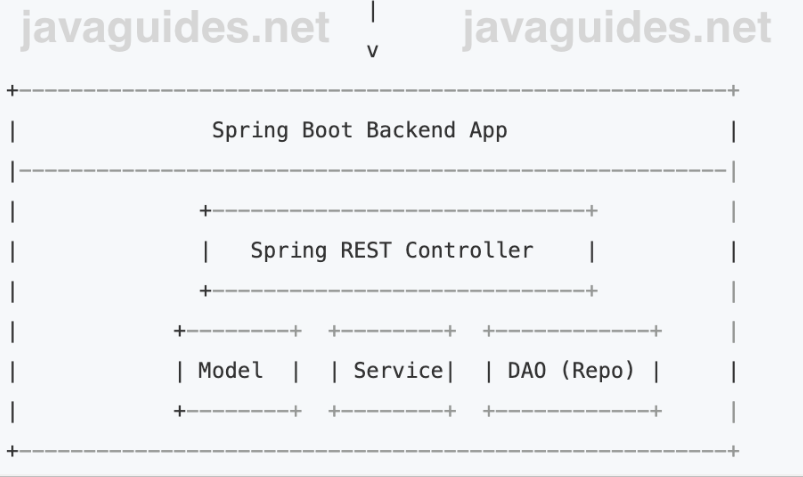

2.Spring Boot Backend App:

• Spring REST Controller: Handles incoming HTTP requests and defines endpoints.


• Model: Represents the data structure or entity.


• Service: Contains the business logic.


• DAO (Repository): Interacts with the database

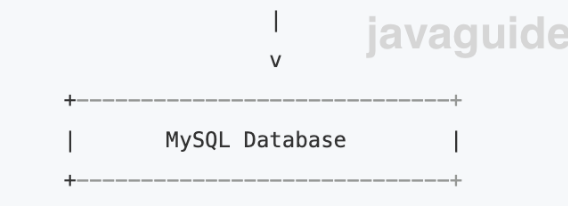

3.MySQL Database: Stores the application's data.

In this architecture, the Vue.js frontend app communicates with the Spring Boot backend app using Axios to

make HTTP requests. The backend app processes these requests, interacts with the MySQL database, and

sends responses back to the frontend app.

Step 1: Setting Up the Spring Boot Project

1.1 Create a Spring Boot Project

Go to Spring Initializr in your web browser.

2.Configure Project Metadata:

• Project: Maven Project


• Language: Java


• Spring Boot: Select the latest version of Spring Boot


• Group: com.example


• Artifact: spring-boot-vue-crud


• Name: spring-boot-vue-crud


• Description: Full Stack Application with Spring Boot and Vue.js


• Package Name: com.example.springbootvuecrud


• Packaging: Jar


• Java Version: 17 (or your preferred version)


• Click Next.

3.Select Dependencies:

On the Dependencies screen, select the dependencies you need:

• Spring Web


• Spring Data JPA


• H2 Database


• Spring Boot DevTools

Click Next.

4.Generate the Project:

• Click Generate to download the project zip file.


• Extract the zip file to your desired location.

5.Open the Project in Your IDE:

• Open your IDE and import the project as a Maven project.

1.2 Update application.properties

Open the application.properties file located in the src/main/resources directory and add the following configuration:

spring.datasource.url=jdbc:h2:mem:testdb
spring.datasource.driverClassName=org.h2.Driver
spring.datasource.username=sa
spring.datasource.password=password

spring.jpa.database-platform=org.hibernate.dialect.H2Dialect
spring.h2.console.enabled=true
spring.jpa.hibernate.ddl-auto=update


1.3 Create the Product Entity

In the com.example.springbootvuecrud.model package, create a new Java class named Product:

                    package com.example.springbootvuecrud.model;

import jakarta.persistence.Entity;
import jakarta.persistence.GeneratedValue;
import jakarta.persistence.GenerationType;
import jakarta.persistence.Id;

@Entity
public class Product {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String name;
    private double price;

    // Getters and Setters
}


1.4 Create the ProductRepository Interface

In the com.example.springbootvuecrud.repository package, create a new Java interface named ProductRepository:

                    package com.example.springbootvuecrud.repository;

import com.example.springbootvuecrud.model.Product;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface ProductRepository extends JpaRepository {
}

1.5 Create the ProductService Class

In the com.example.springbootvuecrud.service package, create a new Java class named ProductService:

    package com.example.springbootvuecrud.service;

import com.example.springbootvuecrud.model.Product;
import com.example.springbootvuecrud.repository.ProductRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class ProductService {

    private final ProductRepository productRepository;

    @Autowired
    public ProductService(ProductRepository productRepository) {
        this.productRepository = productRepository;
    }

    public List getAllProducts() {
        return productRepository.findAll();
    }

    public Product saveProduct(Product product) {
        return productRepository.save(product);
    }

    public Product getProductById(Long id) {
        return productRepository.findById(id).orElse(null);
    }

    public void deleteProduct(Long id) {
        productRepository.deleteById(id);
    }
}

1.6 Create the ProductController Class

In the com.example.springbootvuecrud.controller package, create a new Java class named ProductController:

    package com.example.springbootvuecrud.controller;

import com.example.springbootvuecrud.model.Product;
import com.example.springbootvuecrud.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/products")
public class ProductController {

    private final ProductService productService;

    @Autowired
    public ProductController(ProductService productService) {
        this.productService = productService;
    }

    @GetMapping
    public List getAllProducts() {
        return productService.getAllProducts();
    }

    @PostMapping
    public Product saveProduct(@RequestBody Product product) {
        return productService.saveProduct(product);
    }

    @GetMapping("/{id}")
    public Product getProductById(@PathVariable Long id) {
        return productService.getProductById(id);
    }

    @DeleteMapping("/{id}")
    public void deleteProduct(@PathVariable Long id) {
        productService.deleteProduct(id);
    }
}

Step 2: Creating the Frontend with Vue.js

2.1 Set Up Vue Project

1.Open a terminal and navigate to your workspace directory.

2. Create a new Vue project using Vue CLI:

npm install -g @vue/cli
vue create vue-frontend

3.Navigate to the project directory:

    cd vue-frontend

2.2 Install Axios

Install Axios to make HTTP requests:

npm install axios

2.3 Create Components

Create the necessary components for displaying and managing products.

2.3.1 Create ProductService.js

Create a new file ProductService.js in the src directory to handle API requests for products:

    import axios from 'axios';

const API_BASE_URL = "http://localhost:8080/products";

class ProductService {
    getAllProducts() {
        return axios.get(API_BASE_URL);
    }

    getProductById(productId) {
        return axios.get(`${API_BASE_URL}/${productId}`);
    }

    createProduct(product) {
        return axios.post(API_BASE_URL, product);
    }

    updateProduct(product) {
        return axios.put(`${API_BASE_URL}/${product.id}`, product);
    }

    deleteProduct(productId) {
        return axios.delete(`${API_BASE_URL}/${productId}`);
    }
}

export default new ProductService();

2.3.2 Create ProductListComponent.vue

Create a new file ProductListComponent.vue in the src/components directory:

                    <template>
                        <div>
                          <h2>Products</h2>
                          <ul>
                            <li v-for="product in products" :key="product.id">
                              {{ product.name }} - ${{ product.price }}
                              <button @click="editProduct(product)">Edit</button>
                              <button @click="deleteProduct(product.id)">Delete</button>
                            </li>
                          </ul>
                          <div v-if="editingProduct">
                            <h3>Edit Product</h3>
                            <form @submit.prevent="updateProduct">
                              <input v-model="editingProduct.name" placeholder="Product Name" />
                              <input v-model="editingProduct.price" placeholder="Product Price" type="number" />
                              <button type="submit">Update</button>
                            </form>
                          </div>
                        </div>
                    </template>

                    <script>
                      import ProductService from '../ProductService';

                      export default {
                          data() {
                              return {
                                  products: [],
                                  editingProduct: null
                              };
                          },
                          created() {
                              this.fetchProducts();
                          },
                          methods: {
                              fetchProducts() {
                                  ProductService.getAllProducts().then(response => {
                                      this.products = response.data;
                                  });
                              },
                              editProduct(product) {
                                  this.editingProduct = { ...product };
                              },
                              updateProduct() {
                                  ProductService.updateProduct(this.editingProduct).then(() => {
                                      this.fetchProducts();
                                      this.editingProduct = null;
                                  });
                              },
                              deleteProduct(productId) {
                                  ProductService.deleteProduct(productId).then(() => {
                                      this.fetchProducts();
                                  });
                              }
                          }
                      };
                    </script>


2.3.3 Create AddProductComponent.vue

Create a new file AddProductComponent.vue in the src/components directory:

                    <template>
                        <div>
                          <h2>Add Product</h2>
                          <form @submit.prevent="addProduct">
                            <input v-model="product.name" placeholder="Product Name" />
                            <input v-model="product.price" placeholder="Product Price" type="number" />
                            <button type="submit">Add</button>
                          </form>
                        </div>
                    </template>


2.3.4 Create App.vue

Modify the App.vue file to include routing for the components:

2.3.5 Update main.js

Ensure the main.js file is set up correctly:

    import { createApp } from 'vue';
import App from './App.vue';
import { createRouter, createWebHistory } from 'vue-router';
import ProductListComponent from './components/ProductListComponent.vue';
import AddProductComponent from './components/AddProductComponent.vue';

const routes = [

    <template>
        <div id="app">
          <nav>
            <router-link to="/">Products</router-link>
            <router-link to="/add-product">Add Product</router-link>
          </nav>
          <router-view></router-view>
        </div>
    </template>

    <script>

    </script>

    <style>
      nav {
        margin-bottom: 20px;
      }
    </style>



                { path: '/', component: ProductListComponent },
                { path: '/add-product', component: AddProductComponent }
                ];

                const router = createRouter({
                history: createWebHistory(),
                routes
                });

                const app = createApp(App);
                app.use(router);
                app.mount('#app');



Step 3: Running the Application

3.1 Run the Spring Boot Application

1. Open the SpringBootVueCrudApplication class in the src/main/java/com/example/springbootvuecrud directory.

2.Click the green Run button in your IDE or use the terminal to run the application:

./mvnw spring-boot:run

3.2 Run the Vue.js Application

1. Open a terminal and navigate to the vue-frontend directory. 2.Start the Vue application:

npm run serve

3.Open your web browser and navigate to http://localhost:8080.

You should now be able to view, add, update, and delete products using the Vue.js frontend and Spring Boot

backend.

Conclusion

In this tutorial, we created a full-stack application using Spring Boot for the backend and Vue.js for the frontend.

We implemented CRUD operations and handled the necessary configurations to connect the two parts of

the application. This setup provides a solid foundation for developing more complex full-stack applications.
