Spring Boot, Thymeleaf, Hibernate, JPA, Maven, and MySQL Database

In this tutorial, we will learn how to develop a Spring MVC web application using Spring Boot, Thymeleaf, Hibernate, JPA, Maven, and MySQL database.

What we’ll build

We are building a simple Spring MVC web application using Thymeleaf as a view. Output: HTML page using Thymeleaf which displays a list of users from MySQL database.

1. Create Spring Boot Project

There are many ways to create a Spring Boot application. The simplest way is to use Spring Initializr at http://start.spring.io/, which is an online Spring Boot application generator.

2. Maven Dependencies

Add below Maven dependencies to your Spring Boot project:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
    <groupId>com.mysql</groupId>
    <artifactId>mysql-connector-j</artifactId>
</dependency>

3. Packaging Structure

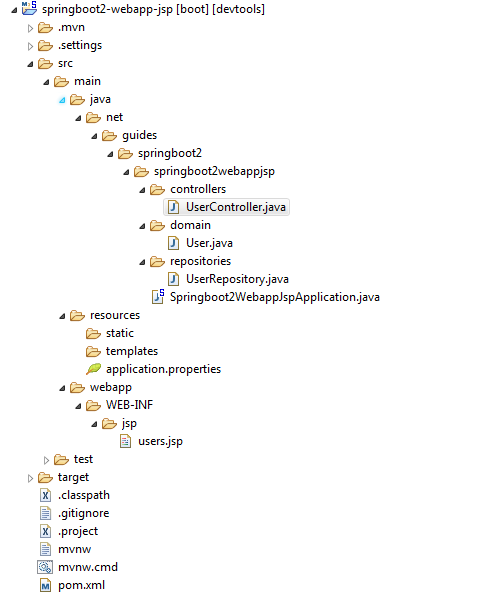

Here is the project structure for your reference:

4. Create a JPA Entity - User

Let's create a User JPA entity with the following content into it:

import jakarta.persistence.*;

    @Entity
    @Table(name = "user")
    public class User
    {
        @Id
        @GeneratedValue(strategy=GenerationType.AUTO)
        private Integer id;
        private String name;

        public User()
        {
        }

        public User(Integer id, String name)
        {
             this.id = id;
             this.name = name;
        }

        public Integer getId()
        {
            return id;
        }

        public void setId(Integer id)
        {
            this.id = id;
        }

        public String getName()
        {
            return name;
        }

        public void setName(String name)
        {
            this.name = name;
        }
    }

5. Create Spring Data JPA Repository - UserRepository

Let's create UserRepository interface that extends JpaRepository interface:

import org.springframework.data.jpa.repository.JpaRepository;

    public interface UserRepository extends JpaRepository
    {

    }

6. Create Spring Controller - HomeController

Let's create HomeController Spring MVC controller with home() handler method that returns index Thyemelaf view:

import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.stereotype.Controller;
    import org.springframework.ui.Model;
    import org.springframework.web.bind.annotation.RequestMapping;

    @Controller
    public class HomeController
    {
        @Autowired UserRepository userRepo;

        @RequestMapping("/")
        public String home(Model model)
        {
            model.addAttribute("users", userRepo.findAll());
            return "index";
        }
    }

7. Configuring MySQL Database

Configure application.properties to connect to your MySQL database.

Let's open an application.properties file and add the following database configuration to it.

logging.level.org.springframework=INFO

    ################### DataSource Configuration ##########################
    spring.datasource.driver-class-name=com.mysql.jdbc.Driver
    spring.datasource.url=jdbc:mysql://localhost:3306/users_database
    spring.datasource.username=root
    spring.datasource.password=root

    ################### Hibernate Configuration ##########################

    spring.jpa.hibernate.ddl-auto=update
    spring.jpa.show-sql=true

message.properties

Create a message.properties under the resources folder and add the following content to it -

app.title=SpringMVC JPA Demo (With SpringBoot)

8. Insert SQL Script

Once you will run this application will create users table in a database and use the below insert SQL script to populate a few records in a users table.

                INSERT INTO `users_database`.`user` (`id`, `name`) VALUES ('1', 'Salman');
                INSERT INTO `users_database`.`user` (`id`, `name`) VALUES ('2', 'SRK');
                INSERT INTO `users_database`.`user` (`id`, `name`) VALUES ('3', 'AMIR');
                INSERT INTO `users_database`.`user` (`id`, `name`) VALUES ('4', 'Tiger');
                INSERT INTO `users_database`.`user` (`id`, `name`) VALUES ('5', 'Prabhas');

9. Create a Thymeleaf View - index.html

Let's create a Thymeleaf view to show the list of users. Locate the index.html file under src/main/resources/templates folder of this project.

<!DOCTYPE html>
    <html xmlns="http://www.w3.org/1999/xhtml"
       xmlns:th="http://www.thymeleaf.org">
    <head>
    <meta charset="utf-8"/>
    <title>Home</title>
    </head>
    <body>
     <h2 th:text="#{app.title}">App Title</h2>
        <table>
            <thead>
             <tr>
               <th>Id</th>
               <th>Name</th>
            </tr>
            </thead>
            <tbody>
              <tr th:each="user : ${users}">
                 <td th:text="${user.id}">Id</td>
                 <td th:text="${user.name}">Name</td>
              </tr>
            </tbody>
        </table>
    </body>
    </html>


10. Running the Application

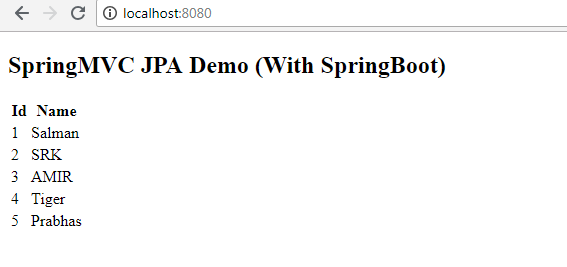

Now run Spring boot application and hit this link in the browser: http://localhost:8080/ You will see below HTML page on the screen:
