Spring Data JPA Pagination Example

In this tutorial, we will learn how to implement Pagination using Spring Data JPA.

As you know, pagination allows the users to see a small portion of data at a time.

Pagination consists of two fields – page size and page number - These two fields we will use while implementing pagination using Spring Data JPA.

Spring Data JPA Pagination Overview

To use paging and sorting APIs provided by Spring Data JPA, your repository interface must extend the PagingAndSortingRepository interface.

PagingAndSortingRepository is an extension of the CrudRepository to provide additional methods to retrieve entities using the pagination and sorting abstraction. It provides two methods :

Here is the internal source code of the PagingAndSortingRepository interface:


@NoRepositoryBean
public interface PagingAndSortingRepository < T, ID > extends CrudRepository < T, ID > {

    /**
     * Returns all entities sorted by the given options.
     *
     * @param sort
     * @return all entities sorted by the given options
     */
    Iterable < T > findAll(Sort sort);

    /**
     * Returns a {@link Page} of entities meeting the paging restriction provided in the {@code Pageable} object.
     *
     * @param pageable
     * @return a page of entities
     */
    Page < T > findAll(Pageable pageable);
}

JpaRepository interface extends the PagingAndSortingRepository interface so if your repository interface is of type JpaRepository, you don’t have to make a change to it.

For pagination, we are going to use the below method from the PagingAndSortingRepository interface:

Page < T > findAll(Pageable pageable);

Note: Spring Data JPA has SimpleJPARepository class which implements PagingAndSortingRepository interface methods so we don't have to write a code to implement PagingAndSortingRepository interface methods.

Let's create a Spring boot project from the scratch and let's implement pagination using Spring Data JPA.

1. Creating Spring Boot Project

Spring Boot provides a web tool called https://start.spring.io to bootstrap an application quickly. Just go to https://start.spring.io and generate a new spring boot project.

2. Maven Dependencies

Here is the complete pom.xml for your reference:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.0.4</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>net.javaguides</groupId>
    <artifactId>spring-data-jpa-course</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-data-jpa-course</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

3. Configure MySQL database

Let's use the MySQL database to store and retrieve the data in this example and we gonna use Hibernate properties to create and drop tables.

Open the application.properties file and add the following configuration to it:

spring.datasource.url=jdbc:mysql://localhost:3306/demo?useSSL=false
spring.datasource.username=root
spring.datasource.password=Mysql@123

spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MySQLDialect

spring.jpa.hibernate.ddl-auto = create-drop

Make sure that you create a demo database before running the Spring Boot application. Also, change the MySQL username and password as per your MySQL installation on your machine.

4. Create JPA Entity - Product.java

Let's create an entity package inside a base package "net.javaguides.springboot".

Within the entity package, create a Product class with the following content:

import lombok.*;
import org.hibernate.annotations.CreationTimestamp;
import org.hibernate.annotations.UpdateTimestamp;

import jakarta.persistence.*;
import java.math.BigDecimal;
import java.time.LocalDateTime;

@Entity
@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@ToString
@Table(
        name = "products",
        schema = "ecommerce",
        uniqueConstraints = {
                @UniqueConstraint(
                        name = "sku_unique",
                        columnNames = "stock_keeping_unit"
                )
        }
)
public class Product {

    @Id
    @GeneratedValue(
            strategy = GenerationType.SEQUENCE,
            generator = "product_generator"
    )

    @SequenceGenerator(
            name = "product_generator",
            sequenceName = "product_sequence_name",
            allocationSize = 1
    )
    private Long id;

    @Column(name = "stock_keeping_unit", nullable = false)
    private String sku;

    @Column(nullable = false)
    private String name;

    private String description;
    private BigDecimal price;
    private boolean active;
    private String imageUrl;

    @CreationTimestamp
    private LocalDateTime dateCreated;

    @UpdateTimestamp
    private LocalDateTime lastUpdated;
}

Note that we are using Lombok annotations to reduce the boilerplate code.

5. Create Spring Data JPA Repository

The next thing we’re gonna do is to create a repository to access Product entity data from the database.

The JpaRepository interface defines methods for all the CRUD operations on the entity, and a default implementation of the JpaRepository called SimpleJpaRepository.

Let's create a repository package inside a base package "net.javaguides.springdatarest".

Within the repository package, create a ProductRepository interface with the following content:

import com.springdatajpa.springboot.entity.Product;
import org.springframework.data.jpa.repository.JpaRepository;

public interface ProductRepository extends JpaRepository {
}

6. Spring Data JPA Pagination Implementation

Let's write the JUnit test and within the JUnit test, we will write a logic to implement pagination using Spring Data JPA:

import com.springdatajpa.springboot.entity.Product;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;

import java.util.List;

@SpringBootTest
public class PaginationAndSortingTest {

    @Autowired
    private ProductRepository productRepository;

    @Test
    void pagination(){
        int pageNo = 0;
        int pageSize = 5;

        // create pageable object
        Pageable pageable = PageRequest.of(pageNo, pageSize);

        // findAll method and pass pageable instance
        Page page = productRepository.findAll(pageable);

        List products = page.getContent();

        products.forEach((p) ->{
            System.out.println(p);
        });

        // total pages
        int totalPage = page.getTotalPages();
        // total elements
        long totalElements = page.getTotalElements();
        // number of elements
        int numberOfElements = page.getNumberOfElements();
        // size
        int size = page.getSize();

        // last
        boolean isLast = page.isLast();
        // first
        boolean isFirst = page.isFirst();
        System.out.println("total page -> " + totalPage);
        System.out.println("totalElements -> " + totalElements);
        System.out.println("numberOfElements -> " + numberOfElements);
        System.out.println(" size ->" + size);
        System.out.println(" isLast -> " + isLast);
        System.out.println(" isFirst -> " + isFirst);
    }
}

Spring Data JPA uses 0 to retrieve first-page information from the database.

To apply only pagination in the result set, we need to create a Pageable object without any Sort information and pass Pageable object to findAll() method:


        // create pageable object
        Pageable pageable = PageRequest.of(pageNo, pageSize);

        // findAll method and pass pageable instance
        Page<Product> page = productRepository.findAll(pageable);

We will retrieve actual content from Page using the getContent() method:

List<Product> products = page.getContent();

We use Page class API's to get more information about pagination:


            // total pages
            int totalPage = page.getTotalPages();
            // total elements
            long totalElements = page.getTotalElements();
            // number of elements
            int numberOfElements = page.getNumberOfElements();
            // size
            int size = page.getSize();

            // last
            boolean isLast = page.isLast();
            // first
            boolean isFirst = page.isFirst();
            System.out.println("total page -> " + totalPage);
            System.out.println("totalElements -> " + totalElements);
            System.out.println("numberOfElements -> " + numberOfElements);
            System.out.println(" size ->" + size);
            System.out.println(" isLast -> " + isLast);
            System.out.println(" isFirst -> " + isFirst);

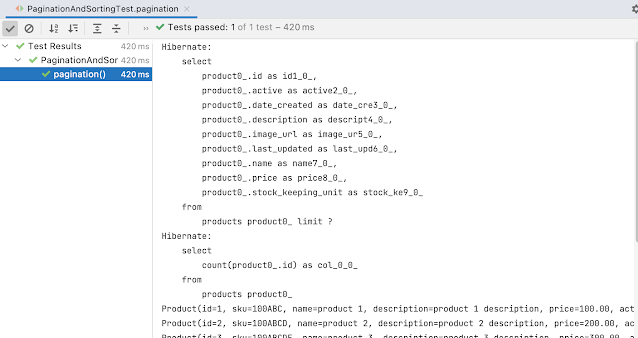

Output

Once you run the JUnit test, you will get the below output:

Note that Hibernate generated SQL query for pagination:


select
        product0_.id as id1_0_,
        product0_.active as active2_0_,
        product0_.date_created as date_cre3_0_,
        product0_.description as descript4_0_,
        product0_.image_url as image_ur5_0_,
        product0_.last_updated as last_upd6_0_,
        product0_.name as name7_0_,
        product0_.price as price8_0_,
        product0_.stock_keeping_unit as stock_ke9_0_
    from
        products product0_ limit ?
Hibernate:
    select
        count(product0_.id) as col_0_0_
    from
        products product0_
